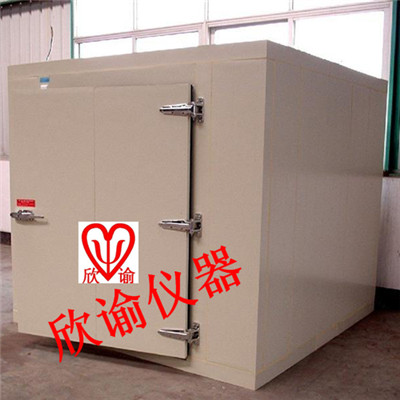

XY-GY-100配(pei)套速凍庫Frozen storage | |||||||||
產 品 結(jie) 構(gou) Product structure | 技 術 參 數 Technical parameters | 備 注 Remarks | |||||||
設計標準：CGMP | |||||||||
※ 公用(yong)配供(gong) public distribution | |||||||||
電源(三相五線制) Power（three-phase and five-wire system） | 380V/50HZ | ||||||||
電源(yuan)功率 Power consumption | 5Kw | ||||||||
冷卻(que)水量(liang) Cooling water qty | ≥5m3/h(T≤30℃/P=0.1-0.15Mpa) | ||||||||
庫(ku)體體積 Library volume | 適合1輛料(liao)車(che) For 1 trolley | （按設計為準） According to the design | |||||||
結構(gou)型(xing)式 Structure | 速凍庫體+制(zhi)冷(leng)機組(zu) Frozen storage + Refrigerating unit | ||||||||
整機重量(liang) Total weight | 600kg（約） | ||||||||
※ 速(su)凍庫體(ti) Frozen storage | |||||||||
性能參數Performance parameters | |||||||||
庫體容積 Storage volume | 1輛料車 1 set Trolley | ||||||||
主要部件Main components | |||||||||
速凍庫(ku)體材料 Frozen Storage material | 外層(ceng)彩鋼(gang)板(ban)/內層(ceng)不銹(xiu)鋼(gang)板(ban) Color steel outer / Stainless steel inner | ||||||||
庫板厚度 Storage plate thickness | 150mm | ||||||||
速凍庫體形狀 Frozen Storage shape | 矩形(xing)體型(xing) Rectangular shape | ||||||||
速凍庫門 Frozen Storage door | 內層不銹(xiu)鋼板(ban) Stainless steel inner | ||||||||
開門(men)方向 Opening direction | 按設計(ji)圖 By design | (用(yong)戶(hu)可選擇) (User selectable) | |||||||
速凍庫門密(mi)封 Frozen storage door seal | 箱門使用橡膠密封 Use rubber seal | 1副 | |||||||
庫體(ti)頂部料車導軌 Trolley guide at top of storage | SUS304 | 1根(gen) 1 piece | |||||||
技術特點(dian)Technical Features | |||||||||
1 | 不銹鋼板材均選用優秀品(pin)牌，經(jing)精密拋光，保證(zheng)(zheng)箱體表面粗糙度，從而保證(zheng)(zheng)無菌要(yao)求 Stainless steel is polished with excellent brand to ensure surface roughness to ensure sterility requirements | ||||||||
2 | 庫(ku)體底部(bu)無(wu)任何部(bu)件(jian)，方便清潔和維護(hu)； There is not any parts at the bottom of storage for easy cleaning and maintenance; | ||||||||
※ 制冷系統Refrigeration System | |||||||||
性能參數Performance parameters | |||||||||
庫體溫度 (空(kong)載出風口溫度) Storage temperature (no load - outlet temperature) | ≤-45℃ | ||||||||
制品溫度(du)（約）Product temperature | +20 - -40℃≤8h | ||||||||
主要部件Main components | |||||||||
壓縮機型號 compressor model | 德(de)G比澤爾/S4T-5.2Y German BITZER/S4T-5.2Y | 1臺 1 set | |||||||
冷(leng)媒(mei) Refrigerant | R404a | ||||||||
功率 Power | 4Kw | ||||||||
油分離器 Oil separator | 美G艾(ai)默生 USA EMERSON | 1只 1 piece | |||||||
氣液分離(li)器 Vapor-liquid separator | 臺灣愛夢得 Taiwan Airmender | 1只(zhi) 1 piece | |||||||
高壓(ya)保護器 High pressure protection device | 丹麥丹佛斯 Denmark DANFOSS | 1只 1 piece | |||||||
低壓(ya)保護器 Low pressure protection device | 丹(dan)麥丹(dan)佛斯(si) Denmark DANFOSS | 1只 1 piece | |||||||
油壓(ya)差控制器 Pressure differential controller | 德G比澤爾DELTA-PⅡ Germany BITZER DELTA-PⅡ | 1只 1 piece | |||||||
干燥(zao)過濾器 Dry filter | 美G艾默生 USA EMERSON | 1套 1 set | |||||||
冷媒視(shi)鏡 Refrigerant endoscopic | 丹麥丹佛(fo)斯(si) Denmark DANFOSS | 1只(zhi) 1 pieces | |||||||
高壓壓力(li)表 High pressure gauges | 德G羅森博格 Germany Rothenberger | 1只 1 piece | |||||||
低壓壓力表 Low pressure gauges | 德G羅森博格 Germany Rothenberger | 3只(zhi) 3 pieces | |||||||
膨脹閥 Expansion valve | 丹麥丹佛斯 Denmark DANFOSS | 1只 1 piece | |||||||
電磁閥 Solenoid valve | 丹(dan)麥丹(dan)佛斯 Denmark DANFOSS | 1只 1 piece | |||||||
水壓保護(hu)控制(zhi)器 Protection Controller for water pressure | 丹(dan)麥(mai)丹(dan)佛斯 Denmark DANFOSS | 1只 1 piece | |||||||
水(shui)冷式冷凝器 Water condenser | 杭州賽(sai)富特 Hangzhou safety | 1只 1 piece | |||||||
管(guan)道保溫(wen) Pipe insulation | 美(mei)G福樂(le)斯 USA ARMAFLEX | ||||||||
技(ji)術(shu)特點Technical Features | |||||||||
1 | 壓(ya)縮機(ji)(ji)采用比澤爾制(zhi)冷壓(ya)縮機(ji)(ji)，性能更(geng)加穩定、可靠、維護(hu)方便 Compressor is used Blitzer refrigeration compressor, more stable performance, reliable, easy to maintain | ||||||||
2 | 壓縮機溫(wen)度與壓力多重(zhong)保(bao)護(hu)功能(neng) Temperature and pressure of compressor has multiple protection features | ||||||||
3 | 液體二次(ci)過冷(leng):高壓(ya)液體進入中冷(leng)器前得(de)到(dao)一次(ci)冷(leng)卻，避免電(dian)機(ji)在(zai)J端工況下(xia)發(fa)熱，同時回氣得(de)到(dao)一定的過熱，避免壓(ya)縮機(ji)在(zai)J低(di)吸(xi)氣壓(ya)力下(xia)工作 Liquid cooling for two times: the cooling before high-pressure liquid enter into condenser to avoid motor heating in extreme conditions. | ||||||||
4 | 采用符(fu)合(he)蒙特利爾公(gong)約的環保型制冷(leng)劑 Compliance with the Montreal Convention, with environmentally friendly refrigerants; | ||||||||
※ 物料(liao)輸送系統(tong)Material handling system | |||||||||
性能參(can)數Performance parameters | |||||||||
輸送方式(shi) Transportation methods | 吊軌式 Performance parameters | ||||||||
主(zhu)要(yao)部件Main components | |||||||||
料車軌道(dao)材(cai)料 track material of trolley | SUS304 | ||||||||
料(liao)車軌道長度 track length of trolley | 按(an)設計圖紙 According to design drawings | ||||||||
技(ji)術特點Technical Features | |||||||||
1 | 采用(yong)吊軌(gui)式設計，傳送速度快，地面更干凈，更易清潔(jie)； Use hanging rail design, transmission speed faster, the ground cleaner and easy to clean. | ||||||||
※ 控制系統Control system | |||||||||
性能參數 | |||||||||
化霜方式 Defrost mode | 電熱(re)自動化霜 heating and automatic defrost | ||||||||
主要(yao)部件(jian)Main components | |||||||||
控制方式 Control mode | 自動運行 Automatic operation | ||||||||
除霜型數(shu)顯(xian)溫度(du)控(kong)制器(qi) Defrost and digital temperature controller | ID974-230V(配溫度探頭(tou)2只) ID974-230V(with 2 pcs temperature probe ) | 1套 1 set | |||||||
接觸器(qi) Contactor | 施耐德 Schneider | 1套 1 set | |||||||
空氣開關 Switch | 施(shi)耐德 Schneider | 1套 1 set | |||||||
控制(zhi)電器柜(ju) Electrical control cabinet | 單D式（安裝在制冷機(ji)組上） Single type (installed in the refrigeration unit ) | ||||||||
電器(qi)部件(jian)型號與數量按實際為準(zhun)) (Electrical components of the model and quantity according to the actual date) | |||||||||
技術(shu)特點Technical Features | |||||||||
1 | 自(zi)動(dong)運行-按設定溫度(du)自(zi)動(dong)運行，到(dao)達溫度(du)自(zi)動(dong)停機； Automatically - automatically by setting the temperature to reach the temperature and automatic shutdown | ||||||||
2 | 自動化霜-根據速凍庫運行(xing)時(shi)(shi)間，自動定時(shi)(shi)化霜； Automatic- defrost automatically on time based on the operation of frozen body. | ||||||||
※ 驗證文(wen)件Verify file | |||||||||
1 | FAT工(gong)廠驗收測試The factory acceptance test | ||||||||
2 | SAT客戶現場驗收測試The customer site acceptance tests | ||||||||
3 | 操(cao)作手冊Operating Manual | ||||||||
4 | 維護(hu)手冊Maintenance Manual | ||||||||
5 | 平面布(bu)置圖Floorplan | ||||||||
6 | 電(dian)氣(qi)線路(lu)圖Electrical circuit diagram | ||||||||
7 | 主(zhu)要部(bu)件說明書Main parts manual | ||||||||
