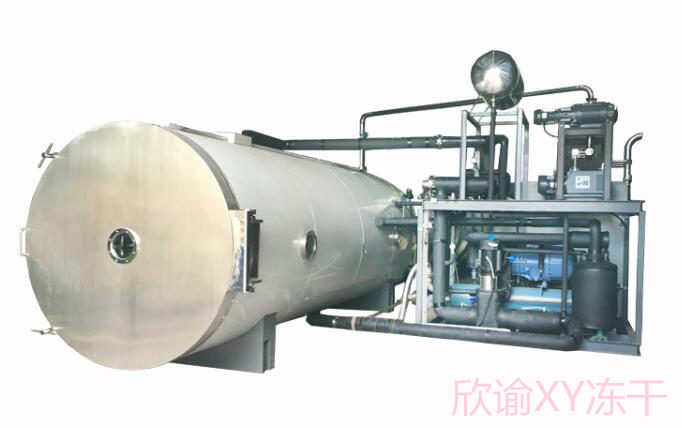

欣諭生產型冷凍干燥XY-GY-1000技術規格及配置
TECHNICAL SPECIFICATIONS
General Detail 總述 | |||
Sr. No. | Description 描述 | Specifications 規(gui)格(ge) | |
1 | Mode 型號(hao) | XY-GY-1000 | |
2 | Output (approx.) 產量（大約） | 1000KG | |
3 | Maximum ice capacity Z大捕冰力 | 1200kg | |
4 | Control 控(kong)制方式 | Microprocessor 微機處理(li) | |
5 | Dimension of unit (approx.) (L × W × H) (mm) 外型尺(chi)寸(cun)（大約）（長(chang)×寬×高） | 14500×2500×3500 (Final dimension based on design) （以(yi)Z終設(she)計尺寸為準） | |
6 | Weight (approx.) 重量（大約） | 38,000kg | |
Chamber 凍干(gan)箱 | |||
1 | Chamber type 凍(dong)干(gan)箱外型 | Cylindrical 圓筒體 | |
2 | Maximum design pressure Z大(da)設計壓力 | 常壓 | |
3 | Maximum design temperature Z大設計溫(wen)度 | 常溫(wen) | |
4 | Finish 內部拋光度 | Ra≤0.5um (0.5Mircon) | |
5 | Validation port 驗證孔 | Included 有（1個）位置箱(xiang)體(ti)頂(ding)部 | |
6 | Viewing port 視鏡 | Illuminated 帶遠射燈【廣角】 | |
Number 數量 | 1 | ||
Location 位置 | Side 側面 | ||
Dimension 尺(chi)寸 | DN200 (mm) | ||
7 | Material 材質 | ||
Internal 內部 | SUS 304 | ||
Insulation 保溫 | polyisocyanurate foam 聚氨酯發泡材料 | ||
External cover 外部 | SUS 304 | ||
Door 箱門 | |||
1 | Finish 拋光(guang)度 | Ra≤0.5um (0.5Mircon) | |
2 | Viewing port 視鏡 | Included 有 | |
Number 數量 | 1 | ||
Location 位置 | On height 1.5m (approx.) 高度1.5米（大約） | ||
3 | Open direction 開門方向(根據客戶要求(qiu)） | Right (face to door, hinge on right side) 右開(kai)（面對(dui)箱門，鉸鏈在右） | |
4 | Open angle 開門角(jiao)度 | More than 110o 大于110度 | |
5 | Gasket 密封圈 | O-shaped silicone rubber single gasket O型硅(gui)橡膠單密(mi)封 | |
6 | Locking arrangement 門鎖(suo)方式 | Auxiliary manual handle 輔助手(shou)柄 | |
7 | Material 材質 | ||
Internal 內(nei)部 | SUS 304 | ||
Insulation 保溫(wen) | polyisocyanurate foam 聚(ju)氨酯發泡(pao)材料 | ||
External cover 外部 | 304 | ||
Shelves 板(ban)層(ceng) | |||
1 | Temperature range 溫度范圍 | -45~-50°C to + 80°C | |
2 | Temperature sensors (shelves) 板(ban)層溫度探(tan)頭 | 3 | |
Silicone oil inlet 導熱(re)油(you)進口 | |||
Silicone oil outlet 導熱(re)油出(chu)口 | |||
3 | sensors 溫度探頭 | 3 | |
4 | Number of shelves 板層(ceng)數(shu) | 16+ 1(upper radiant shelf) （溫(wen)度補償(chang)板） | |
5 | Dimension (L × W × T) (mm) 板層尺寸(cun)（以設計(ji)為(wei)準） | 4000x1600x15 | |
6 | area (sq. m) 面積 | 102 | |
7 | Spacing (mm) 板(ban)間距 | 65 | |
8 | Hose of flexible connection 軟管連接 | Welding 焊(han)接(jie) | |
9 | Finish 拋光(guang)度 | Ra≤0.5um (0.5Micron) | |
10 | Level 平整度 | ≤±0.5mm/m | |
11 | Material 材質 | SUS 304 | |
Condenser 冷凝器 | |||
1 | Condenser type 冷(leng)凝器外型(xing) | Cylindrical 圓筒體 | |
2 | Viewing port 視鏡 | Illuminated 帶遠射(she)燈【廣角】 | |
Number 數量 | 1 | ||
Location 位置(zhi) | Easily observe the whole inside condenser 容易觀察到整(zheng)個箱體(ti)內部 | ||
Dimension 尺寸 | DN200 (mm) | ||
3 | Final temperature J限溫度 | -65°C~-70℃ | |
4 | Cooling time (+20 to -40°C) 制冷速度(空載(zai)) | ≤30 minutes (empty) | |
5 | Maximum design pressure Z大(da)設計壓力 | 常壓 | |
6 | Maximum design temperature Z大設計溫度(du) | 常溫 | |
7 | Finish 拋光(guang)度 | Ra≤0.5um (0.5Mircon) | |
8 | Coiled pipe material 盤管(guan)材(cai)質 | SUS 304 | |
Internal 內部 | SUS 304 | ||
Insulation 保(bao)溫 | polyisocyanurate foam 聚(ju)氨酯發泡材料 | ||
External cover 外部 | SUS 304 | ||
Shelf Heating / Cooling 板層升溫/降溫 | |||
1 | Circulation pump 循環(huan)泵 | ||
Brand 品(pin)牌 | DF | ||
Model 型號 | CDL65-1 | ||
Type 形(xing)式 | Centrifugal pump 離心式 | ||
Number 數量 | 1 | ||
Motor power 電機功率(lv) | 5.5kW | ||
2 | Plate heat exchanger 板式熱交換器 | ||
Brand 品(pin)牌 | Hexnovo | ||
Type 方式 | Sealed brazed stainless steel 不銹鋼封蜂窩式 | ||
Number 數(shu)量 | 1 | ||
3 | Heater 電加熱 | PID control PID 控制(zhi)【雙組(zu)電加熱系(xi)統】 | |
4 | Maximum heating power Z大加(jia)熱功率 | 24KW*4 | |
5 | Thermal fluid 導熱介質 | Special heat conducting oil for freeze dryer 凍(dong)干機(ji)專用導熱油 | |
6 | Shelf cooling time (+20°C to -40°C) 板層制冷速度(空(kong)載) | ≤60 minutes (empty) | |
7 | Heating rate 加熱速度(大約(yue)) | 1°C/min (approx.) | |
Refrigerating System 制(zhi)冷系統 | |||
1 | Compressor 壓(ya)縮機 | ||
Brand 品牌 | RefComp 萊富(fu)康(kang)（意大利(li)） | ||
Model 型號 | SW3L10500 | ||
Type 方(fang)式 | Two-stage 雙級 | ||
Number 數量 | 2 | ||
Motor power 電機(ji)功率 | 78kW *2 | ||
2 | Refrigerant 制冷(leng)劑 | HFC-free R404A | |
Main refrigerating units 主要制冷元件 | |||
1 | Thermostatic expansion valve 熱力膨脹閥(fa) | Danfoss | |
2 | Solenoid valve 電磁閥 | Danfoss | |
3 | Service valve關斷閥 | Denaline | |
4 | Safety valve安全閥 | Castel | |
5 | Capped valve頂(ding)蓋閥 | Castel | |
6 | Sight glass視液鏡 | Danfoss | |
7 | Water cooling condenser水(shui)冷(leng)凝(ning)器 | Teyi | |
8 | Oil separator 油分離器 | Fasike | |
9 | Gas-liquid separator 汽液分離器 | Fasike | |
10 | Filter 過濾(lv)器 | 濾(lv)殼Hongguo濾芯 ALCO | |
Vacuum System 真空(kong)系統 | |||
1 | Final vacuum J限(xian)真空 | ≤2.7×10 -2mbar | |
2 | Evacuation time 抽氣速度 | ≤30minutes (1×103 mbar to 1×10-1 mbar) | |
3 | Vacuum pump 真空泵 | ||
Brand 品(pin)牌 | Baosi | ||
Model 型(xing)號 | BSV90 | ||
Type 方式 | OIL-rotary 油旋(xuan)片(pian)式真(zhen)空泵 | ||
Number 數量 | 6 | ||
Flow rate 排氣速度 | 90m3/hr (×6) | ||
Motor power 電機(ji)功率 | 3.7Kw (×3) | ||
5 | Mechanical booster pump 羅茨泵(beng) | ||
Brand 品牌 | BAOSI | ||
Model 型號(hao) | BSJ300L | ||
Type 方式 | Roots 機械(xie)式 | ||
Number 數量 | 1 | ||
Flow rate 抽氣速度 | 1000m3/hr (×2) | ||
Motor power 電機(ji)功率(lv) | 3.7KW (×2) | ||
6 | Anti-suction valve 真(zhen)空(kong)防倒吸閥 | Included 有 | |
Control System 控(kong)制系統 | |||
1 | Software 軟件 | 欣諭-5000（可(ke)隨時免(mian)費升(sheng)級） | |
Automatic 自動 | Included 有(you) | ||
Manual 手動 | Included 有(you) | ||
2 | PLC+PC 可編(bian)程控制器 | Omron | |
3 | Industrial personal Computer 工控機 | 品(pin)牌(pai)平(ping)板電腦 | |
4 | Vacuum gauge 真空探頭 | ZHVAC | |
5 | Temperature probe 溫度探頭 | Pt100 | |
6 | Pressure transducer 壓力變(bian)送器 | GK | |
7 | Breaker 空開 | schneider | |
8 | Contactor 接觸器 | schneider | |
9
| Relay 繼電器 | schneider | |
Safety System 安全系統 | |||
1 | Vacuum failure protection 真空失敗保護 | Included 有 | |
2 | Temperature failure protection 溫度失(shi)敗(bai)保護 | Included 有 | |
3 | Compressor protection 壓縮(suo)機保護 | Included 有 | |
4 | Other motors protection 其它電機保護 | Included 有(you) | |
5 | Interlock protection 連鎖保護(hu) | Included 有 | |
Utility Requirement (approx.) 公用工程消耗(大(da)約) | |||
1 | Electricity - total electrical load 總裝機(ji)功率 | 270kW (380V, 50Hz, 3Phase, 5Wire) | |
2 | Cooling water for refrigerant cooling 用于制冷(leng)系(xi)統的冷(leng)卻水 | 60m3/hr (1.5≤P≤2bar, T≤25°C) | |
