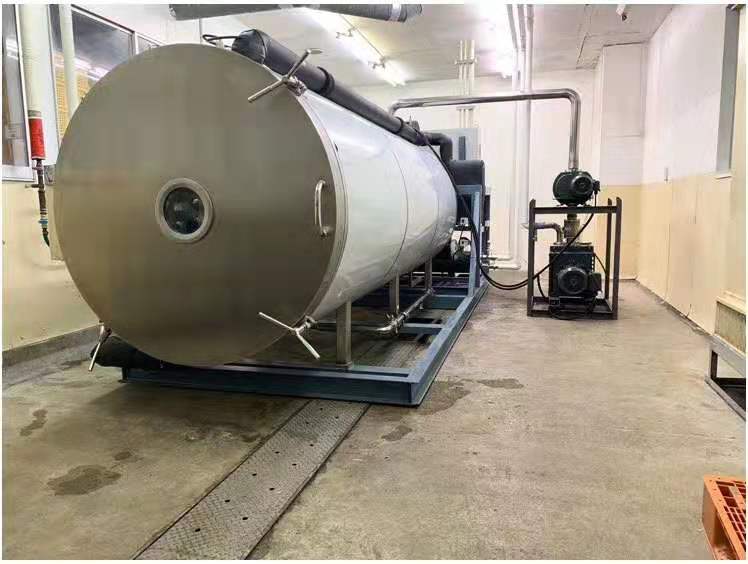

Xy-gy-100真空冷(leng)凍干燥機vacuum freeze dryer | |||||||||||
產(chan) 品 結(jie) 構 Product structure | 技 術(shu) 參 數 Technical parameters | 備 注 Remarks | |||||||||
設計標準(zhun)：CGMP | |||||||||||
※ 公用配供 public distribution | |||||||||||
電(dian)源(三相五(wu)線制) Power （three-phase and five-wire system） | 380V/50HZ | ||||||||||
總(zong)功率 Total Power | 29Kw | ||||||||||
制(zhi)冷功率(lv) Refrigeration power | 15kw | ||||||||||
真(zhen)空功(gong)率 Vacuum power | 1.1kw | ||||||||||
加熱功率 Heating power | 12kw | ||||||||||
冷卻(que)水量(liang) Cooling water qty | ≥10m3/h(T≤30℃/P=0.1-0.15Mpa) | ||||||||||
壓縮空氣 Compressed air | ≥0.45m3/Min（P=0.5-0.8Mpa） | ||||||||||
除霜水 Defrost water | ≥200kg (溫度50-60℃) | ||||||||||
整(zheng)機體積(ji)（長*寬(kuan)*高） Whole volume | 6000*2200*2500 | （按設計(ji)為準） (According to design standard) | |||||||||
結構(gou)型式 Structure | 分(fen)體(ti)式(臥式圓(yuan)桶型) Split (Horizontal drum-type) | ||||||||||
整機(ji)重(zhong)量 Total weight | 5000kg（約） | ||||||||||
※ 干(gan)燥箱(xiang)體 Drying body | |||||||||||
性能參數Performance parameters | |||||||||||
設計制造標準 Design and manufacturing standards | 真(zhen)空容器(qi)標準 Vacuum vessel standard | ||||||||||
箱體設計壓力 Chamber design pressure | -0.1Mpa | ||||||||||
箱體設計(ji)溫度 Chamber design temperature | 120℃ | ||||||||||
箱體真空泄(xie)漏率 Chamber Vacuum leak rate | 0.025 m3 Pa./sec | ||||||||||
主要部(bu)件main components | |||||||||||
箱體(ti)材料 Chamber material | SUS304 | ||||||||||
箱體幾何(he)形狀 Chamber Geometry | 臥式(shi)圓(yuan)桶型 Horizontal drum-type | ||||||||||
門鎖方(fang)式 Lock method | 手柄(bing)旋緊(jin)式(shi) Handle tighten type | ||||||||||
開門方式 Open the way | 轉開門 Turn the door | ||||||||||
開門(men)方向 Direction of opening door | 按照設計圖 According to the design | 用(yong)戶可以選擇(ze) user select | |||||||||
箱門材料 Door materials | SUS304 | ||||||||||
箱體(ti)外部裝(zhuang)飾 Box external decoration | 不(bu)銹鋼原(yuan)色 Stainless steel primary color | ||||||||||
箱門(men)觀(guan)察(cha)窗 Door observation window | 門中(zhong)央左右各一只φ150mm觀察窗(chuang) Two lights at the right and left of the middle door /φ150mm | 1個 1 piece | |||||||||
箱體觀察窗 Observation window box | 側面φ150mm(LED)帶燈觀察(cha)窗 Φ150mm /at the side of the observation window with a lamp(LED) | 1個 1 piece | |||||||||
箱門(men)密(mi)封 Door sealing | 箱門使用O截(jie)面硅橡膠(jiao)密封 Sealed with silicone rubber O-section | 1 副 1 pair | |||||||||
庫體頂部料車(che)導軌 Trolley guide at top of Chamber | SUS304 | 1根 1 piece | |||||||||
物料(liao)溫(wen)度探頭(tou) Material temperature sensor | 進口熱電偶(產(chan)地：美G 歐米茄/A級精度) Import thermocouple (Origin: U.S. Omega / A-level precision) | 4支(zhi) 4 pieces | |||||||||
真空(kong)傳感器 Vacuum sensor | 成都正華(hua)APG-500 Chengdu Zhenghua APG-500 | 1支 1 piece | |||||||||
技術特(te)點Technical Features | |||||||||||
1 | 不銹鋼板材均選用優秀品(pin)牌，經(jing)精密拋光，保證箱體表(biao)面粗糙度(du)，從而(er)保證無菌要求 Stainless steel is polished with excellent brand to ensure surface roughness to ensure sterility requirements | ||||||||||
2 | 箱體底(di)部無任何(he)部件，方便清潔和(he)維護。 There has not any parts at the bottom of chamber to facilitate cleaning and maintenance | ||||||||||
3 | 箱體、板層、軟管均經過(guo)多道工序檢驗(yan)，確保不漏 Cabinet, board level, and hose are tested after multiple procedures to ensure without leakage | ||||||||||
4 | 庫體(ti)全部為不(bu)銹鋼(gang)制造； Libraries are used stainless steel; | ||||||||||
※ 板(ban) 層 Shelf | |||||||||||
性能參數Performance parameters | |||||||||||
擱板(ban)有效總面積 Total usable area of shelves | 10M2 | ||||||||||
板層(ceng)Z高溫(wen)度 Maximum temperature of lamellar | +120℃ | ||||||||||
板層升溫速率(空載) Shelf heating rate (no load) | ≥1℃/min | ||||||||||
板層冷卻速率(空(kong)載) Shelf cooling rate(no load) | ≥1℃/min | ||||||||||
主要部件(jian)Main components | |||||||||||
板層材料 Shelf material | 鋁合(he)金(jin)型材D31（6363） Aluminum alloy D31 (6363) | ||||||||||
設(she)計壓力 Design pressure | 0.5MPa | ||||||||||
表面(mian)處理(li) Surface Treatment | 陽J氧化處理,(膜厚6μ)+著色處理 anode oxidation process, (thickness 6μ) + Shading | ||||||||||
板層(ceng)層(ceng)數 Number of board layers | 左右對稱懸掛式（13+13塊） Symmetrical hanging (13+13 block) | ||||||||||
板(ban)層(ceng)間(jian)距 Shelf spacing | 77mm | ||||||||||
板層(ceng)尺(chi)寸 Shelf dimensions | 540mm*780mm*18/塊 | ||||||||||
加熱總管 Heating main tube | SUS304不銹鋼 | 4根(gen) 4 pieces | |||||||||
連接軟管(guan) Connecting hose | SUS304不銹鋼 | 52根 52 pieces | |||||||||
技術特點Technical Features | |||||||||||
1 | 板層具有很高強度，能夠耐受長期使用； Shelf has high strength and can withstand long-term use; | ||||||||||
2 | 板(ban)層通過專用機械(xie)加工，可保證高(gao)要求平(ping)整度； Shelf through a dedicated machining, can guarantee high demand flatness; | ||||||||||
3 | 板層加熱控溫精度±1℃（PID調節(jie)） Shelf heating temperature control accuracy at ± 1 ℃ (PID regulator) | ||||||||||
※ 冷(leng) 凝 器Condenser | |||||||||||
性能參數(shu)Performance parameters | |||||||||||
設計標準 Design Standard | 真空容器標準(zhun) Vacuum vessel standard | ||||||||||
箱體設計(ji)壓力(li) Cabinet design pressure | -0.1Mpa | ||||||||||
Z大凝冰量 Maximum condensate ice | 150KG/batch/set | ||||||||||
主(zhu)要部件Main components | |||||||||||
冷(leng)凝(ning)器(qi)材料 Condenser material | SUS304 | ||||||||||
盤管材料 Coil pipe material | SUS304 | ||||||||||
盤管形式 Coil form | 蛇(she)型(xing)盤管(guan) Snake-type coil | ||||||||||
盤(pan)管(guan)位置 Coil position | 安裝在板層下(xia)方 Installed under the board | ||||||||||
冷阱觀(guan)察窗(chuang) Observation window | 側面φ150mm(LED)帶(dai)燈觀察窗 Φ150mm /at the side of the observation window with a lamp(LED) | 1個 1 piece | |||||||||
化(hua)霜方式 Defrosting Mode | 熱(re)水霧狀(zhuang)噴淋 Hot Water mist spray | ||||||||||
化霜噴(pen)嘴 Defrost nozzle | SUS304 | 4只 4 pieces | |||||||||
氣密性試驗值 Tightness test value | 1.2Mpa/30min，保壓24hr無任何泄(xie)漏現象 1.2Mpa/30min, packing 24hr without any leakage | ||||||||||
耐壓試(shi)驗 Pressure test | 1.8Mpa/30min，無(wu)明顯的變形現象 1.8Mpa/30min, no significant deformation | ||||||||||
溫度傳(chuan)感器 Temperature probe | 進口(kou)熱電(dian)偶(產地：美(mei)G 歐米茄/A級精度(du)) Import thermocouple (Origin: U.S. Omega / A-level precision) | 1支 1 piece | |||||||||
技術特點Technical Features | |||||||||||
1 | 不銹鋼板材均選用優秀品牌，經精密拋光，保證箱(xiang)體(ti)表面粗糙度，從而保證無菌要求(qiu)； Stainless steel is polished with excellent brand to ensure surface roughness to ensure sterility requirements | ||||||||||
2 | 氬(ya)氣保護自動焊，一次內外成型(xing)，保證管路不漏和內部干凈 Argon welding, forming an internal and external, to ensure pipes cleanly and without leak | ||||||||||
3 | 冷阱內壁采用特殊方式清洗，保(bao)證無污(wu)垢，確保(bao)系統(tong)清潔 The inside wall of the cold trap is cleaned by special way to ensure no dirt, ensure the system clean | ||||||||||
4 | 庫體(ti)內全部(bu)為不銹鋼制造(zao) Storage are used stainless steel | ||||||||||
※ 制冷系統(tong)Refrigeration System | |||||||||||
性(xing)能參數Performance parameters | |||||||||||
冷凝(ning)器降溫速率(空載) Condenser cooling rate (no load) | 20℃→-40℃≤30min | ||||||||||
冷凝器降溫速率(lv)(空載) Condenser cooling rate (no load) | ≤-70℃ | ||||||||||
主要部(bu)件Main components | |||||||||||
壓縮機 Compressor | 德(de)G比澤爾/S6H-20.2Y German BITZER /S6H-20.2Y | 1臺 1 set | |||||||||
冷(leng)媒(mei) Refrigerant | R404a | ||||||||||
功(gong)率 Power | 15Kw | ||||||||||
油分離器(qi) Oil separator | 美(mei)G艾默生 USA EMERSON | 1只(zhi) 1 piece | |||||||||
氣液分離(li)器 Vapor-liquid separator | 臺灣(wan)愛夢得 Taiwan Airmender | 1只 1 piece | |||||||||
高壓保護器(qi) High pressure protection device | 丹麥(mai)丹佛斯(si) Denmark DANFOSS | 1只 1 piece | |||||||||
低壓保護器 Low pressure protection device | 丹(dan)麥(mai)丹(dan)佛斯 Denmark DANFOSS | 1只 1 piece | |||||||||
油(you)壓差控制器(qi) Pressure differential controller | 德G比澤爾DELTA-PⅡ Germany BITZER DELTA-PⅡ | 1只 1 piece | |||||||||
干燥過濾器 Dry filter | 美G艾默(mo)生(sheng) USA EMERSON | 1套 1 set | |||||||||
冷(leng)媒視鏡(jing) Refrigerant endoscopic | 丹麥丹佛斯 Denmark DANFOSS | 1只(zhi) 1 pieces | |||||||||
高(gao)壓(ya)壓(ya)力(li)表 High pressure gauges | 德(de)G羅森(sen)博格 Germany Rothenberger | 1只 1 piece | |||||||||
低壓壓力表(biao) Low pressure gauges | 德G羅森博格(ge) Germany Rothenberger | 3只(zhi) 3 pieces | |||||||||
膨脹閥 Expansion valve | 丹麥丹佛斯 Denmark DANFOSS | 1只(zhi) 1 piece | |||||||||
電磁閥 Solenoid valve | 丹麥丹佛斯 Denmark DANFOSS | 1只 1 piece | |||||||||
水壓(ya)保護控制器(qi) Protection Controller for water pressure | 丹(dan)麥丹(dan)佛斯 Denmark DANFOSS | 1只 1 piece | |||||||||
水冷(leng)式(shi)冷(leng)凝器 Water condenser | 杭州賽富特 Hangzhou safety | 1只(zhi) 1 piece | |||||||||
管道(dao)保溫 Pipe insulation | 美G福樂斯 USA ARMAFLEX | ||||||||||
技術特點Technical Features | |||||||||||
1 | 壓縮機采用比澤爾(er)制冷壓縮機，性(xing)能更(geng)加(jia)穩定(ding)、可靠、維護(hu)方便 Compressor is used Blitzer refrigeration compressor, more stable performance, reliable, easy to maintain | ||||||||||
2 | 壓(ya)縮機溫度與(yu)壓(ya)力多重保護功(gong)能 Temperature and pressure of compressor has multiple protection features | ||||||||||
3 | 液(ye)體(ti)二次過(guo)冷:高壓液(ye)體(ti)進入中冷器(qi)前(qian)得(de)到一次冷卻(que)，避免電機在J端工況下(xia)發(fa)熱，同時回(hui)氣(qi)得(de)到一定(ding)的過(guo)熱，避免壓縮(suo)機在J低吸氣(qi)壓力(li)下(xia)工作 Liquid cooling for two times: the cooling before high-pressure liquid enter into condenser to avoid motor heating in extreme conditions. | ||||||||||
4 | 采用符合(he)蒙特(te)利爾(er)公約的(de)環保型制冷劑 Compliance with the Montreal Convention, with environmentally friendly refrigerants; | ||||||||||
※ 真空系統Vacuum system | |||||||||||
性能參數(shu)Performance parameters | |||||||||||
抽氣速率(lv) Extraction rate | 大氣壓(ya)Atmospheric pressure→133.3Pa≤20min | ||||||||||
J限真空度 Ultimate vacuum | ≤10Pa | ||||||||||
真空調節范圍 Vacuum adjustable range | 13.3-200Pa | ||||||||||
主(zhu)要部件Main components | |||||||||||
真空泵型號/數(shu)量 Vacuum pump type/Number | 上海眾德V0063D+內置油霧過(guo)濾器(qi) SHANGHAI ZD V0063D + oil mist filter | 1臺(tai) 1 piece | |||||||||
真(zhen)空泵抽速(su) Vacuum pump speed | 63m3/h | ||||||||||
機組功率 Power Units | 1.5kw | ||||||||||
真空泵油 Vacuum oil | 100# | 1.5L | |||||||||
捕水器排水閥 Condenser drainage valve | 德GFV球閥(fa)/DN25 German FV ball valve /DN25 | 1只 1 piece | |||||||||
破真空閥 Broken vacuum valve | 德(de)GFV球閥/DN25 German FV ball valve /DN25 | 1只 1 piece | |||||||||
真空(kong)調(diao)節閥 Vacuum control valve | 西(xi)馬特KF16 SIGEV KF16 | 1只 1 piece | |||||||||
技術特(te)點Technical Features | |||||||||||
1 | 針對(dui)凍(dong)干水果的(de)特點，采用旋片(pian)真(zhen)空泵，抽速更(geng)大，效率更(geng)高。 According to the characteristics of freeze-dried fruit, use rotary vane vacuum pump , the pumping speed is larger and more efficient | ||||||||||
2 | 采用不銹(xiu)鋼廣角噴嘴，除霜節水(shui)，GX。 Stainless steel wide nozzle, defrosting water saving, high efficiency. | ||||||||||
3 | 真空度可按設定值自動控制，可實現一個凍干周期內真空度的多次變量控制；10-200Pa內可調節 Vacuum degree controlled according to set value automatic which can realize a lyophilization cycle vacuum degree of multiple variable control; Can be adjusted within 10-200pa | ||||||||||
※ 循環(huan)系統Circulatory system | |||||||||||
性能參數(shu)Performance parameters | |||||||||||
板層升溫速率(空載) Shelf heating rate (no load) | ≥1℃/min | ||||||||||
主(zhu)要部件Main components | |||||||||||
循(xun)環(huan)泵 Circulating pump | 中G南方水泵TD40-16/2 CHINA CNP TD40-16/2 | 1臺 1 piece | |||||||||
功(gong)率(lv) Power | 1.1Kw | ||||||||||
導熱液 Thermal liquid | 去離子水(shui) Deionized water | (機內量) (machine capacity) | |||||||||
加熱方式 Heating mode | 電熱管12KW/G產 Heating pipe 12KW /made in china | 1 套 1 sets | |||||||||
溫度傳感器(qi) Temperature Sensor | 熱電(dian)偶 Thermocouple | 1支 1 piece | |||||||||
管道保溫材料(liao) Pipe insulation material | 耐高溫(wen)保溫(wen)棉 High temperature resistant cotton | ||||||||||
技術特點Technical Features | |||||||||||
1 | 電(dian)加熱采用PID能(neng)量調節(jie)控(kong)制，具有(you)節(jie)能(neng)和控(kong)溫穩定的特點； Electric heating is controlled by PID with the characteristics of energy efficiency and temperature stability; | ||||||||||
2 | 采用中G品牌的CNP，實(shi)現無泄漏，無噪音，穩定運行(xing) Use china brands of CNP , leak-free, no noise, stable operation. | ||||||||||
※ 物料輸(shu)送系統Material handling system | |||||||||||
性能參數Performance parameters | |||||||||||
輸(shu)送方式 Transportation methods | 吊(diao)軌(gui)式 Performance parameters | ||||||||||
主(zhu)要(yao)部(bu)件Main components | |||||||||||
料(liao)車材料(liao)/數量 Trolley material /NO. | SUS304 | 1輛（干燥庫內） 1set in dry library | |||||||||
SUS304 | 1輛（速(su)凍庫內） 1 set in frozen library | ||||||||||
每輛料(liao)車裝盤數 Trays loading on the trolley: | 每層2只(zhi)×12層 2×12 layers | 24只(zhi) 24 pieces | |||||||||
料盤材料/數(shu)量 Number of trays/material | 厚度2.0mm/鋁合金/陽J氧化處理/沖壓盤(pan) Thickness of 2.0mm / aluminum / anodized / stamping plate | 24只（干燥庫(ku)內） 24 pieces in dry library | |||||||||
厚度(du)2.0mm/鋁合金(jin)/陽J氧(yang)化處(chu)理/沖(chong)壓盤 Thickness of 2.0mm / aluminum / anodized / stamping plate | 24只（速凍(dong)庫內） 24pieces in frozen library | ||||||||||
料盤尺寸 Tray NO. | 540mm×780mm | ||||||||||
總料盤面積 Area of trays | 540mm×780mm×24只 | 10m2 | |||||||||
料車(che)軌道材料 track material of trolley | SUS304 | ||||||||||
料車(che)軌道(dao)長度 track length of trolley | 按設計(ji)圖紙(zhi)According to design drawings | ||||||||||
技術特點Technical Features | |||||||||||
1 | 料(liao)盤(pan)采用(yong)沖壓(ya)加工，不變(bian)形，經(jing)久耐用(yong)； Trays are used stamping, no deformation, durable; | ||||||||||
2 | 雙套(tao)設(she)計：干燥庫體(ti)和(he)速凍庫體(ti)內(nei)各(ge)有一套(tao)料(liao)車(che)和(he)料(liao)盤，能連續(xu)運(yun)行(xing)，提(ti)高產能量； Two sets of design: both dry library body and frozen library have a set of trays and trolleys, which can run continuously, improve production energy; | ||||||||||
3 | 采用吊軌式設計，傳送速度快(kuai)，地面更干凈，更易清潔； Use hanging rail design, transmission speed faster, the ground cleaner and easy to clean. | ||||||||||
※ 控制系統(tong)Control system | |||||||||||
性(xing)能參數 | |||||||||||
冷凍(dong)干燥(zao)方式(shi)Freeze-drying method
| 手(shou)動、自(zi)動可(ke)切換 Manual and automatic switch | ||||||||||
化(hua)霜(shuang)方式Defrost mode
| 熱(re)水霧(wu)狀噴淋 Hot water mist spray | ||||||||||
主要(yao)部件(jian)Main components | |||||||||||
控制軟件 Control software | XY-FD-10 | 1套 one set | |||||||||
控制方式 Control mode | PC+PLC(全(quan)自動+程序+全(quan)手動應急運行(xing)） PC +PLC (automatic + program + full manual emergency operation) | ||||||||||
PLC（程序控制器） | SIEMENS（西門(men)子(zi)）S7-1200 | 1只 1 piece | |||||||||
凍干曲線 Freeze-drying curves | 配(pei)置式管理，任(ren)意凍干曲(qu)線儲存(cun) Profile management, storage of any freeze-drying curve | ||||||||||
溫度模塊(kuai) Temperature module | SIEMENS（西(xi)門子） | 1只 1 piece | |||||||||
真空模塊 Vacuum module | SIEMENS（西門子） | 1只 1 piece | |||||||||
PC | DELL | 1臺 1 set | |||||||||
顯示屏 Display | 19.5寸 DELL 液晶顯示器 19.5 inch DELL LCD Monitor | 1臺(tai) 1 set | |||||||||
電流保護器(qi) Current protection device | 施耐德(de) Schneider | 1 套 1 set | |||||||||
交(jiao)流接觸器 AC contactor | 施耐德 Schneider | 1 套(tao) 1 set | |||||||||
電器柜 Electrical cabinets | 可聯在機架上/可單D放置linked at the rack on / placed separately | 1只 1 piece | |||||||||
電器部件型號與數(shu)量按(an)實際為(wei)準) (Electrical components of the model and quantity according to the actual date) | |||||||||||
技(ji)術特點Technical Features | |||||||||||
1 | 符合FDA歐(ou)盟標準，電子簽名，多組密碼； Comply with FDA EU standards, electronic signatures, multiple passwords; | ||||||||||
2 | 自動操作和手(shou)動操作在任何節(jie)點任意(yi)切換； Automatic operation and manual operation can change in any node; | ||||||||||
3 | 系統操作可(ke)在機房(fang)、凍干控制(zhi)室進行，并且相互(hu)(hu)具有互(hu)(hu)鎖功(gong)能，避免誤操作； We can operate in the engine room and freeze-dried control room, which interlock with each other to avoid misuse; | ||||||||||
4 | 友善的人(ren)機界面具有各種(zhong)部件、主要部件工作狀態及溫度(du)、真空(kong)度(du)參數顯示； A variety of components, the main components working condition and temperature, vacuum | ||||||||||
5 | “工(gong)藝(yi)配方(fang)管理”隨(sui)意設置凍干工(gong)藝(yi)曲線； "Process recipe management" are free to set the freeze-drying technology curve; | ||||||||||
6 | “冷(leng)凍干燥”自動過程有階段顯(xian)示功能，并可任(ren)意跳段； Show stage feature in "Freeze drying" processes, and any jump | ||||||||||
7 | “冷凍(dong)干燥”過程中可對配方進行(xing)隨時調整； "Freeze drying" process can be adjusted to the formula; | ||||||||||
8 | 操作(zuo)畫面具有各個故障點顯(xian)示功能(neng)； Operation screen display with different point of failure; | ||||||||||
9 | 具(ju)有數據、曲線兩種記錄功能，可隨時調用或打印(yin)； It has data and curve records function，Can always call or print; | ||||||||||
10 | 凍(dong)干(gan)過程智能(neng)化控制(zhi)，可自動(dong)進行凍干終點判(pan)別。 Freeze-drying process intelligent control, automatic lyophilized end discrimination. | ||||||||||
11 | 智能遠(yuan)程(cheng)控(kong)制(zhi)，遠(yuan)程(cheng)診斷。實(shi)現中央控(kong)制(zhi)室集中控(kong)制(zhi)，節(jie)約人力(li)。減輕勞動強度。 Intelligent remote control, remote diagnostics. Central control room to achieve centralized control, saving manpower. Reduce labor intensity | ||||||||||
12 | 操作(zuo)面板可實現多G語言一(yi)鍵式切(qie)換。 The operation panel can realize multi-language one-button switch. | ||||||||||
※ 驗證文(wen)件Verify file | |||||||||||
1 | FAT工廠驗(yan)收測(ce)試The factory acceptance test | ||||||||||
2 | SAT客戶現場驗收測試(shi)The customer site acceptance tests | ||||||||||
3 | 操(cao)作手冊Operating Manual | ||||||||||
4 | 維護手冊Maintenance Manual | ||||||||||
5 | 平(ping)面布置圖Floorplan | ||||||||||
6 | 電氣線(xian)路圖Electrical circuit diagram | ||||||||||
7 | 主要部件說明書Main parts manual | ||||||||||
※ 備(bei)品備(bei)件 | |||||||||||
序(xu)號NO | 名稱(cheng) Name | 型號/規(gui)格/材質 Model / Specification / Material | 數量 Quantity | ||||||||
1 | 冷媒 Refrigerant | 霍尼韋爾R404A Honeywell R404A | 10KG | ||||||||
2 | 冷凍機(ji)油 Refrigeration Oil | 德G比澤爾BSE170 German BITZER BSE170 | 5L | ||||||||
3 | 電磁(ci)閥(fa)線圈 Solenoid valve coil | 丹麥丹佛斯 018F6701 Denmark DANFOSS 018F6701 | 1只 1 piece | ||||||||
4 | 溫度傳(chuan)感 器Temperature Sensor | T型(xing) T type | 2 根 2 pieces | ||||||||
5 | 制冷(leng)專用扳(ban)手 Refrigeration special wrench | CT122 | 1把 1 piece | ||||||||
6 | 制冷專用加液管 Plus liquid pipes | 6MM | 1根 1 piece | ||||||||
